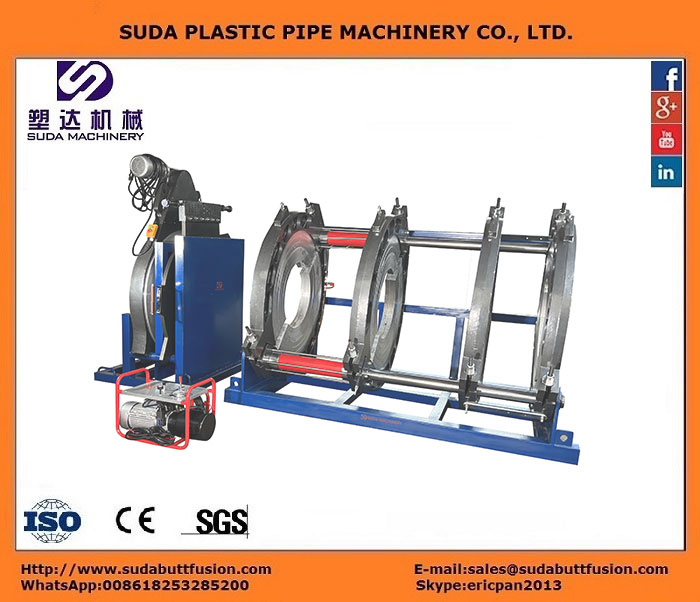

SUD630-1200 Butt Fusion Machine

BRIEF

1. Consist of Basic frame, Hydraulic unit, Trimmer, Heater, and Electric Control Unit

2.Removable PTFE coated heating plate with separate temperature control system.

3. Electric Trimmer with reversible double cutting edge blades.

4. Hydraulic unit provides welding machine with compressing power.

5. Be made of Aluminum material, easy to carry and transport.

6. Low starting pressure ensures reliable welding quality of small pipes.

7. Temperature Controller and Timer, easy to know the time and temperature.

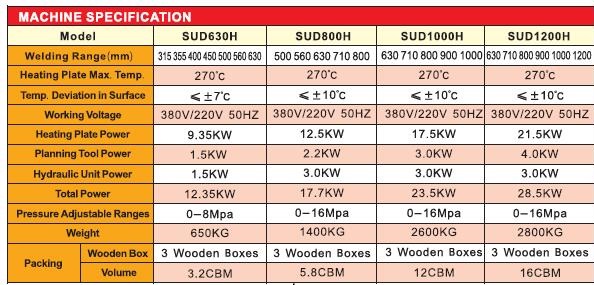

MACHINE SPECIFICATIONS

Model	SUD1200H
Welding Range (mm)	630 710 800 900 1000 1200
Heating Plate Max. Temperature	270°C
Temperature Deviation in Surface	≤±10°C
Working Voltage, Frequency	380V, 50/60Hz
Heating Plate Power	21.5KW
Planning Tool Power	4.0KW
Hydraulic Unit Power	3.0KW
Total Power	28.5KW
Pressure Adjustable Ranges	0-16Mpa
Weight	2800KG
Packing	3 Wooden Boxes
Volume	16CBM

Optional Parts:

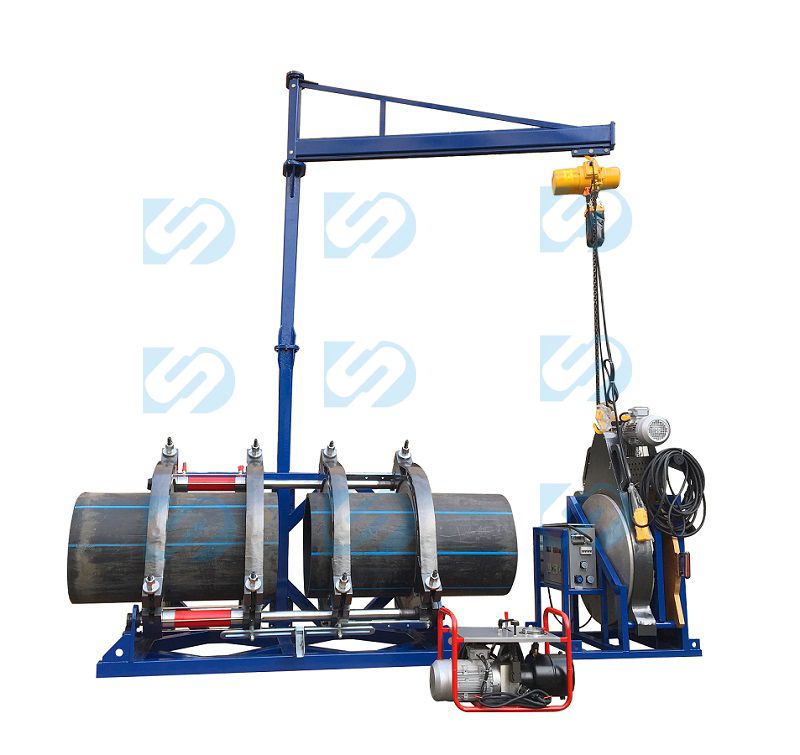

1. Hoist/Crane

2. Trolley

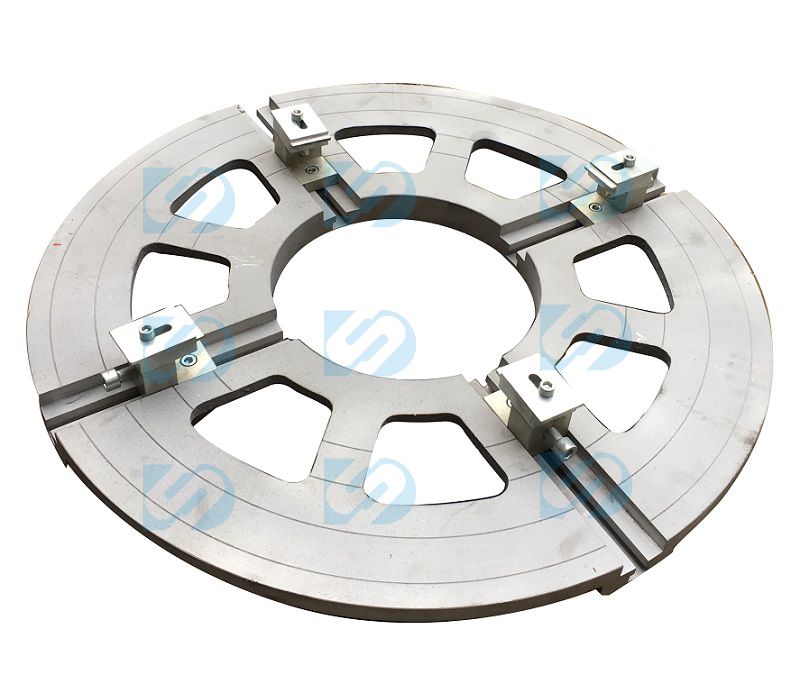

3. Stub End Holder
